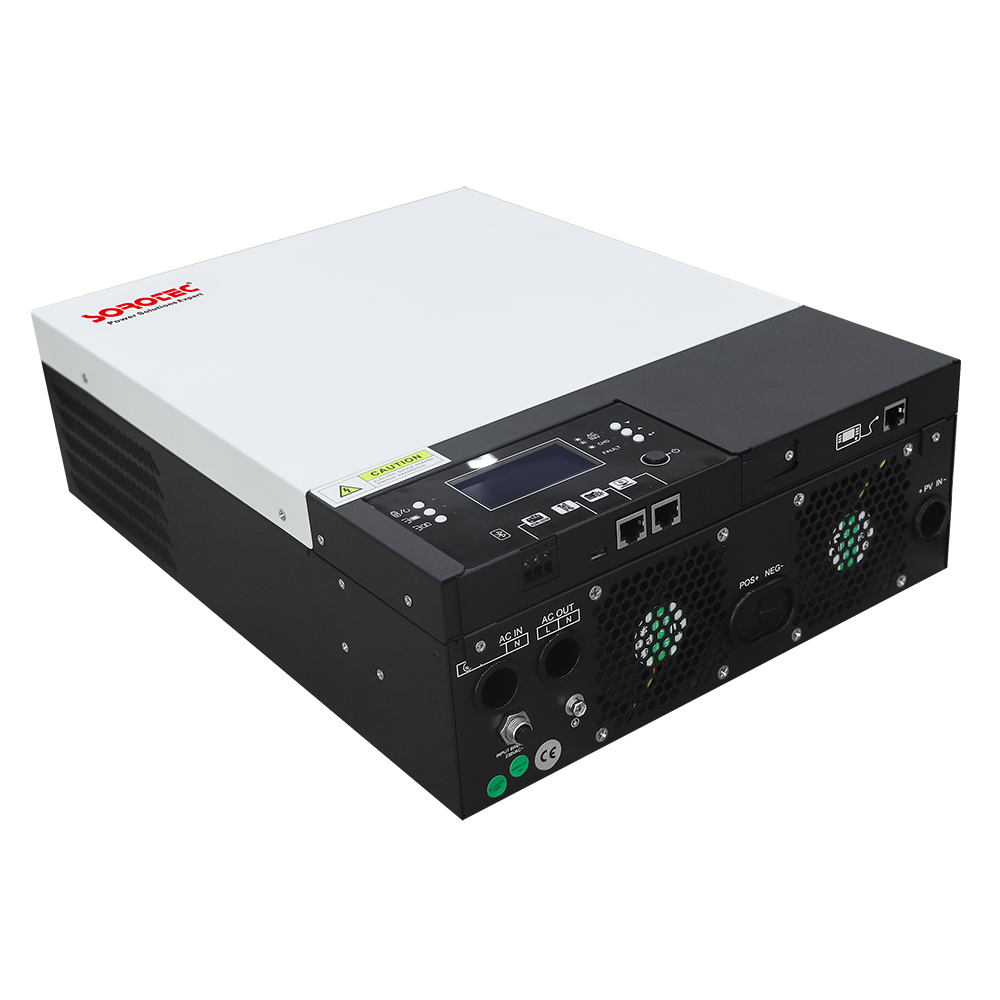

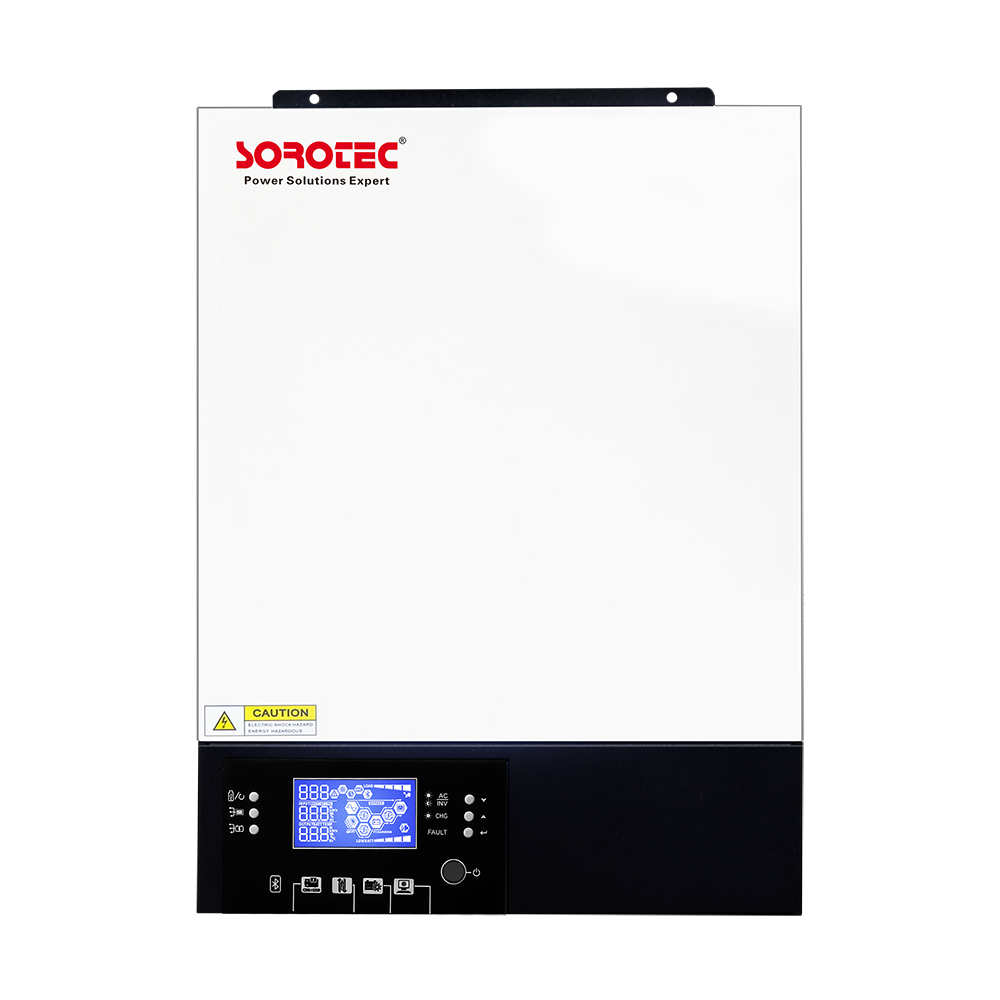

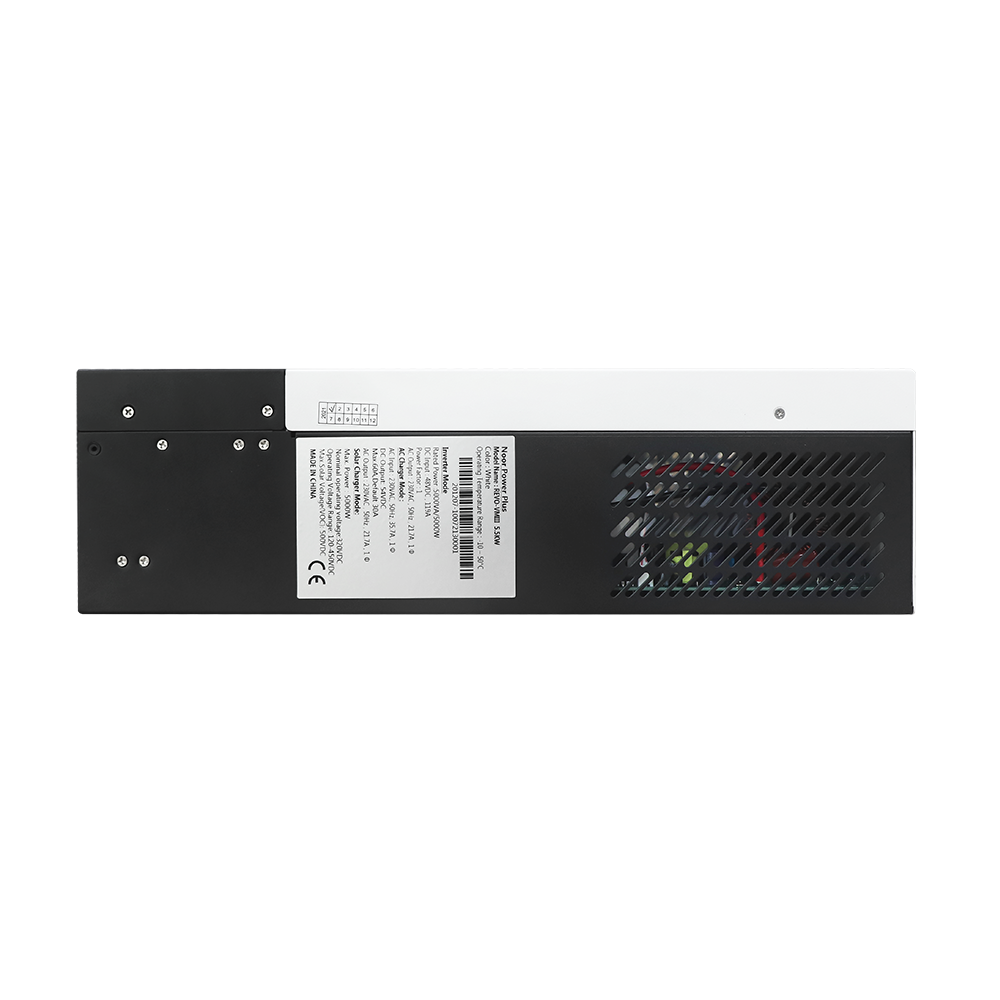

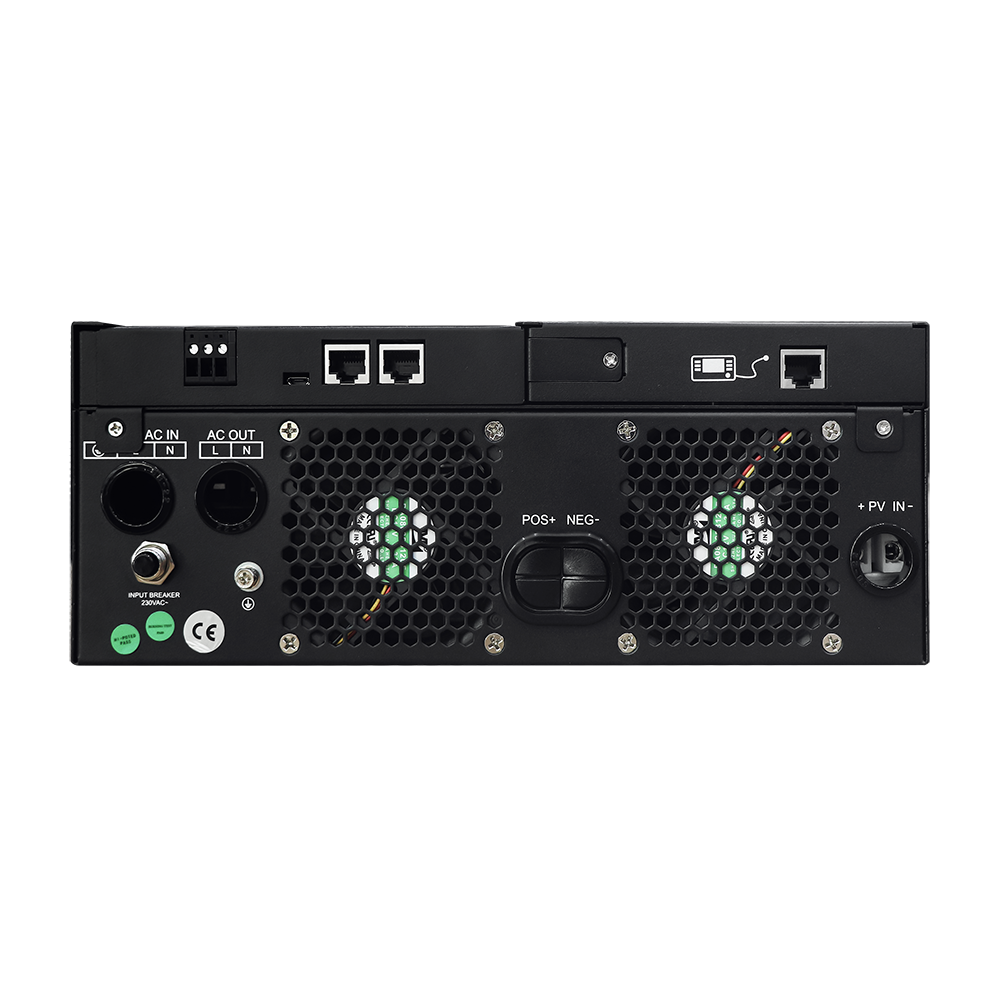

REVO VM III Series Solar Power Inverter with
wide PV input range 120-450VDC
Best Off Grid Solar Inverter Manufacturers
Hybrid operation connected with battery optional. LCD display
Output power factor PF=1.0
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
With strong R&D strength and production capabilities, SOROTEC now has become a professional manufacturer and reliable supplier in the industry. All our products including off grid solar inverters for sale are manufactured based on the strict quality management system and international standards. off grid solar inverters for sale If you are interested in our new product off grid solar inverters for sale and others, welcome you to contact us. is the latest hot products in off grid solar inverters for sale market.
Key Features:
1.Output power factor PF=1.0
2.Configurable AC/Solar Charger priority via LCD setting
3.Compatible to mains voltage or generator power
4.Overload ,Over temperature ,Short circuit protection
5.Integrated Bluetooth interface with Android App
6.Supports USB On-the-Go function
7.Reserved communication port (RS-485, CAN-BUS or RS-232) for BMS
8.Battery independency
9.User-friendly LCD operation
10.Replaceable fan design
MODEL | REVO VM III 3k-24 | REVO VM III 5k-48 |
Rated Power | 3000VA/3000W | 5000VA/5000W |
INPUT | ||
Voltage | 230 VAC | |
Selectable Voltage Range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) | |
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
SOLAR CHARGER & AC CHARGER | ||
Solar Charger type | MPPT | |
Maximum PV Array Power | 4000W | 5000W |
MPP Range @ Operating Voltage | 120 ~ 450 VDC | |
Maximum PV Array Open Circuit Voltage | 500 VDC | |
Maxmum Solar Charge Current | 80A | |
t Maximum AC Charge Current | 60A | |
Maximum Charge Current | 80A | |
BATTERY | ||
Battery Voltage | 24 VDC | 48 VDC |
Floating Charge Voltage | 27 VDC | 54 VDC |
Overcharge Protection | 33 VDC | 63 VDC |
OUTPUT | ||
AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |
Surge Power | 6000VA | 10000VA |
Efficiency (Peak) | Up to 93.5% | |
Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) | |
Waveform | Pure sine wave | |
PHYSICAL | ||
Dimension, D x W x H (mm) | 115 x 300 x 400 | |
Net Weight (kgs) | 9 | 10 |
Communication Interface | USB/RS232/RS485/Bluetooth/Dry-contact | |
OPERATING ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
Operating Temperature | -10°C to 50°C | |
Storage Temperature | -15°C to 60°C |
