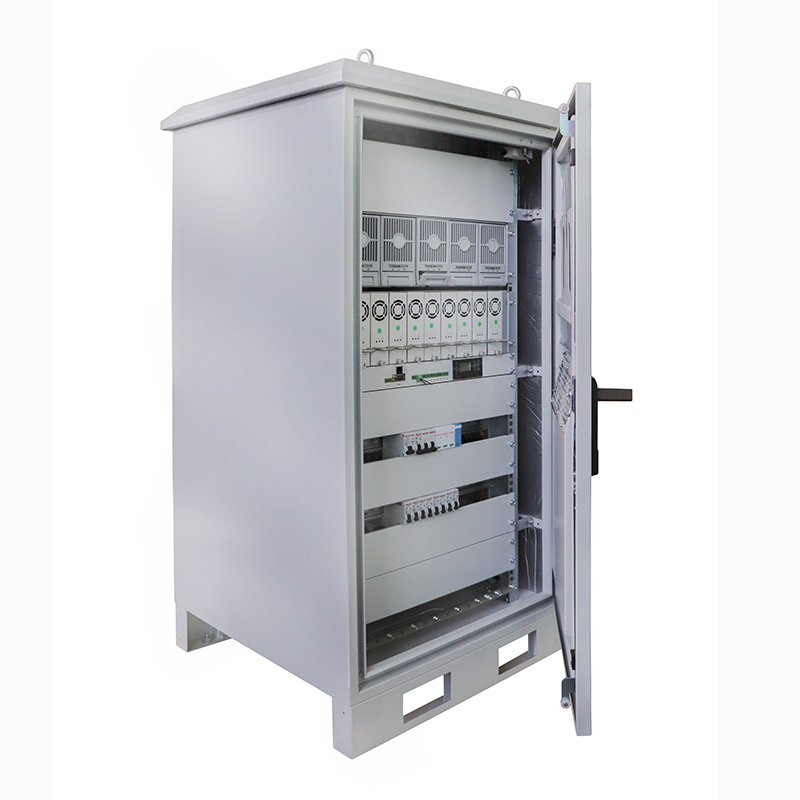

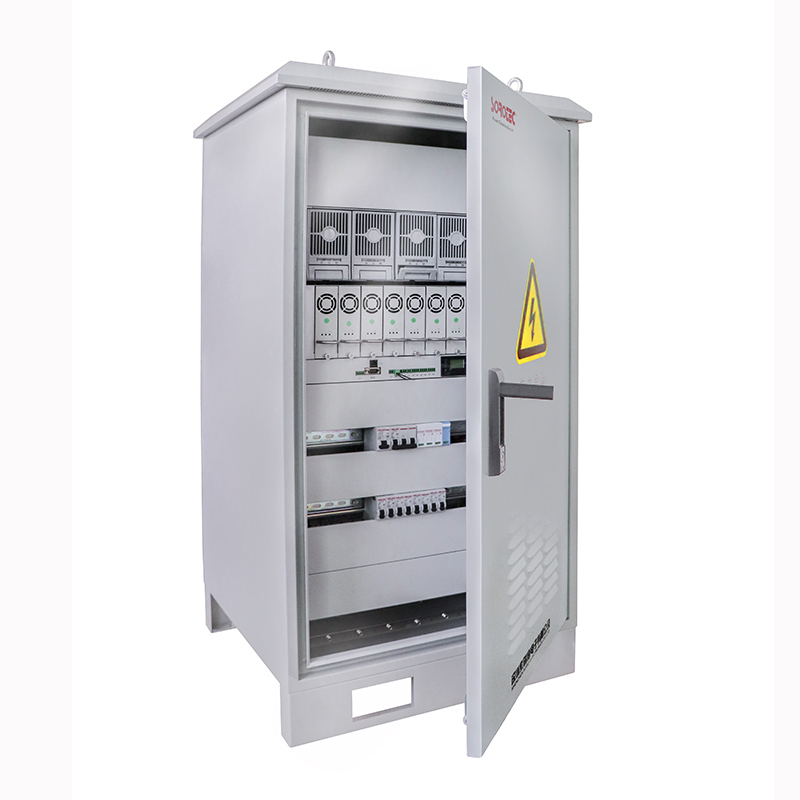

48VDC Outdoor Solar Power System Telecom Base Station SHW48250
Application: power plant or substation power for controlling, protection and automatic device, emergency lighting, communications, steam turbine DC oil pump and so on independent DC systems. It can provide reliable power supply in the case of a power failure completely in plant or substation. The traditional DC systems connect battery pack and run with float charging mode. The new DC system run with silicon controlled rectifying power supply for battery.
It is required to pass on-site quality control tests. It will be inspected with regard to seam slippage, color shading, color matching, and symmetry.
Relying on advanced technology, excellent production capabilities, and perfect service, SOROTEC takes the lead in the industry now and spreads our SOROTEC all over the world. Together with our products, our services are also supplied to be the highest-level. telecom power supply 48v SOROTEC have a group of service professionals who are responsible for answering questions raised by customers through the Internet or phone, tracking the logistics status, and helping customers solve any problem. Whether you'd like to get more info on what, why and how we do, try our new product - bulk production telecom power supply 48v with good price, or would like to partner up, we'd love to hear from you.Our design team have been endowing telecom power supply 48v with their own innovations which keeps up with the trend.
Key Features:
1.Adopt advanced MCU microprocessor control technology.
2.Advanced MPPT Technology.High converting efficiency higher than 97% for minimizing energy loss.
3.Reversed current protection at night.over voltage and reverse polarity protection.
4.Capable of selection different charging mode fo various types of batteries.
5.Protection degree:IP55.
6.Industy-leading power density compact size and high reliability.
7.Doorframe designed with waterproof structure, posted on the seal and equipped with wateerproof lock in the door double insulation design.
8.Cabine adopt quality galvanized wheet or aluminum coated steel sheet as material, surfce coating anti-UV power.
9.Suitable for outdoor installation.
10.With remote monitoring system aperation.
Fine dust-proof, water-proof features, According to the overall standard of design dust-proof and water-proof Ip55
1.With sun protection, heat insulation, roof ventilation
2.With waterproof and the filtration dust inlet, the cabinet front door shutters.
| SHW48250 Solar System | Rectifier Module(1-10) MPPT Solar Charge Controller(1-10) |
| INPUT | |
| MPPT Range @Operating Voltage | 60 ~150VDC |
| Maximum PV Array Power | 3000W |
| Maximum Input Current | 62A |
| OUTPUT | |
| Nominal Battery Voltage | 42-58VDC |
| Maximum Charge Current | 50A(max:61A) |
| Maximum Efficiency | 98% |
| Charging Method | Three stages: bulk, absorption and floating |
| PROTECTION | |
| Overload Protection | > 110% : audible alarm |
| Overcharge Protection | Yes |
| Polarity Reversal Protection @Solar Cell & Battery | Yes |
| INDICATORS | |
| LCD Panel | LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions |
| LED Display | Three indicators for solar, charging, and load status |
| Rectifier Module | |
| Rated input voltage | 220V |
| AC input Voltage range AC | 90-290V |
| input Frequency range | 45-65HZ |
| Power factor | ≥0.99 |
| Efficiency | >92% |
| Rated output voltage | 48V |
| Rated output current | 0-50A |
| Voltage range | 42-58V |
| WIND CONTROLLER: | |
| Input Power | 1KW/2KW |
| Input Voltage | 150-300VAC |
| Output Voltage | 48VDC |
| Ouput Current | 30A/50A |
| ENVIRONMENT | |
| Humidity | 0 ~ 100% RH (No condensing) |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 75°C |
| Altitude | 0 ~ 3000 m |
